Hollow cigarette tube making machine
Hollow cigarette tube making machine.
Filtered Cigarette Tubes Making Machine, Filtered Hollow Tubes Manufacturing
We can supply one kind of machine which is special in making hollow cigarette tube .
As many countries is controlling traditional cigarette more and more strictly. Empty tubes is becoming more and more popullar in some countries. We produce brand new MJ-4 hollow tube making machine
You may check the below video for reference.
{youtube}cGZ51ORedNQ{/youtube}
The machine is built to suit the following specification:
Finished tube length: 84 mm +/- 1,5 mm
Tube diameter: 81 mm +/- 0,05 mm
Tipping paper length: 24 mm
Filter length: 15 mm +/- 1,5 mm
We also can make according to your requirement.
Materials requirement
Filter rod: Length 90 mm; Diameter 8,1 mm
Cigarette paper: Width 28 mm
Tipping paper: Width 27 mm
Glue for cigarette paper: Swift 1677
Glue for tipping paper: Swift 5201
Machine Overall specifications
Dimension: Length 2,5 meters x width 1,8 meters
Weight: app. 1000 Kg
Power supply: 7 kW
Compressed air supply: 9m3 / h 6 bar
Vacuum air supply: 40 m3 / h
Speed per minute: 1000 per minute
Production efficiency: 90 %
Standard colour: Green

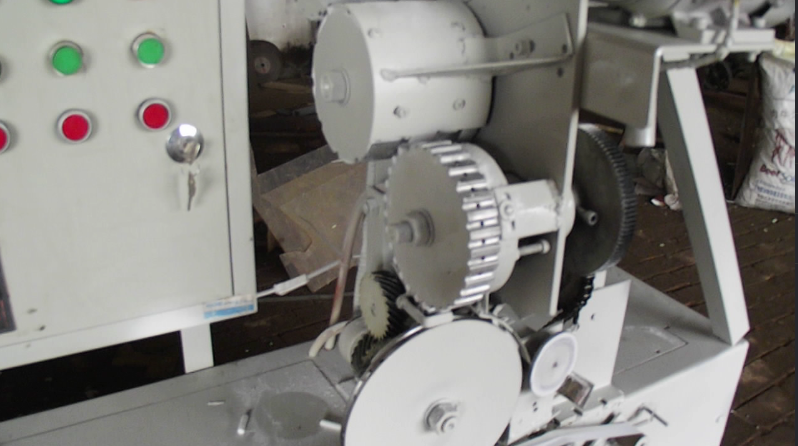

Knife head
2 rotary knifes containing 2 blades
Knife sharpening disks
Adjustment for correct cutting position

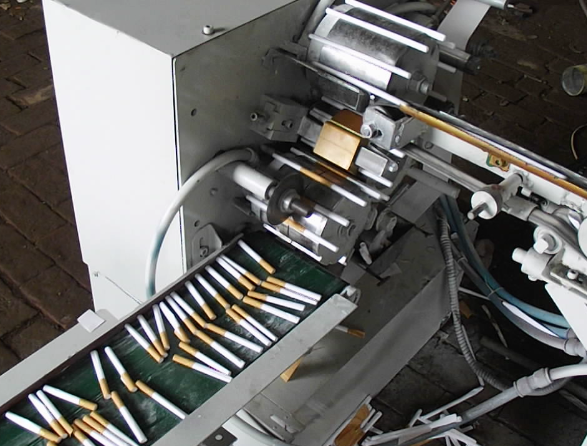

Catch & Delivery
Double row delivery drum.
Delivery belt with two rows for delivered Tubes.
