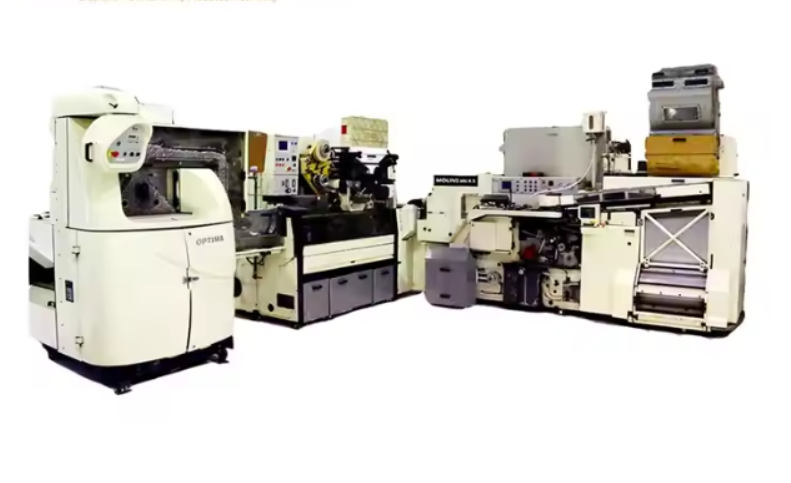

MK9 commercial Cigarette Making Machine
MK9 commercial Cigarette Making Machine
MK9 commercial Cigarette Making Machine has been upgraded with AC servo driving system that simplifies the mechanical structures and reduces the failure and maintenance cost, and improves the transmission precision. As the result, the operation of this machine is more precise and thus high quality output is guaranteed.
Microwave weight control system is adopted.
Friendly human-machine interface with features of easier production parameter setting, working condition real-time displaying, shift production statistic output, and machine fault alarming and trouble shooting solutions.
Features:
•Speed:5000cig./min.
•Cigarette length: 65-110mm(tobacco rod length and filter length can be tailor made)
•Cigarette diameter: 5.4-9mm
•Total power consumption: 50kw
•Machine measurements: (LxWxH)
Mark9 tobacco rod maker: 3630x1270x870mm
MAXS filter assembler: 3340x1340x1820mm
HCF80 Tray loader: 2350x2400x2100mm
| Items | Parameters | |
|---|---|---|
| Output | ||
| 1 | Production speed(King Size) | 5000cig/min |
| 2 | Production speed(Supper Slim) | 3500cig/min |
| Product Dimension | ||
| 3 | Filter Cigarette Length | 65~110mm±0.5mm |
| 4 | Rod Cigarette Length | 55~90mm |
| 5 | Rod Cigarette Diameter | 5.4~9.0mm |
| Ambient Conditions | ||
| 6 | Air Pressure | 6×105pa |
| 7 | Supply Voltage | 380VA±10%(3phase) |
| 8 | Frequency | 50Hz±1Hz |
| 9 | Total power | 50KW |
| 10 | Total Weight | 8600KGS |
| Outside dimension | ||
| 11 | Maker | 4185×1390×2100MM |
| 12 | Plug Assembler | 3557×1537×2210MM |
| 13 | Tray filler | 3350×2530×1900MM |
