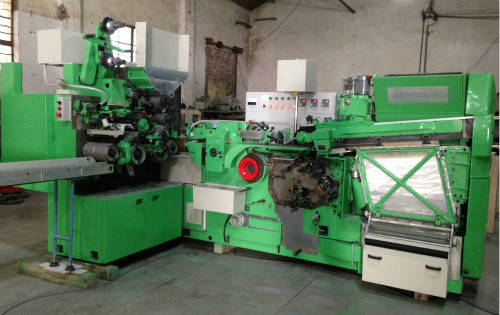

MK8 industrial Cigarette Making Machine
MK8 industrial Cigarette Making machine combination consists of MK8 cigarette maker, MAX3 plug assembler and double row catcher, which are originated from Molins MK8 and Hauni MAX3. It has following features:
Features:
•Speed:2000cig./min.
•PLC control and frequency inverter for main motor.
•Power requirement:
Maker: 9.3W
Plug assembler: 7.3W
•Compressed air required: 110-130m3/h(0.05~0.08Mpa)
•Machine weight:
Maker: 3.05t
Plug assembler: 1.8t
•Machine measurements: (LxWxH)
Maker: 3259x1200x1800mm
Plug assembler: 2860x1050x2200mm
Main Parameters :
| # | Items | 参数 Parameters |
|---|---|---|
| Output | ||
| 1 | Production speed | 2000cig/min |
| 2 | Rod Speed | 140-175m/min |
| 3 | Cut-off Speed | 2000-2500r/min |
| Product Dimension | ||
| 4 | Filter Cigarette Length | 65-120mm |
| 5 | Rod Cigarette Length | 45-90mm |
| 6 | Rod Cigarette Diameter | 6.3-9.0mm |
| 7 | Filter Plug Length | 60-159mm |
| 8 | Filter Tip Length | 5-30mm |
| 9 | Filter Tip Diameter | 6.3-9.0mm |
| 10 | Tipping Paper Length | 13-45mm |
| Ambient Conditions | ||
| 11 | Air Pressure | 6×105pa |
| 12 | Working Pressure | 4×105pa |
| 13 | Supply Voltage | 380±38V(3phases) |
| 14 | Lighting Voltage | 20±22V |
| 15 | Frequency | 50Hz±1Hz |
| Machine Weight | ||
| 16 | Maker | 3050KGS |
| 17 | Plug Assembler | 1800KGS |
| 18 | Total Power | 17KW |
